WIRE EDM

Electrical Discharge Machining

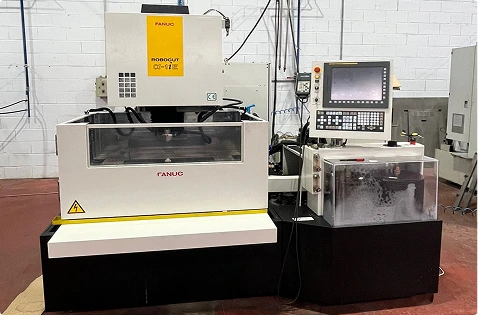

Our Wire EDM (Electrical Discharge Machining) capabilities are designed to meet the highest standards of precision and efficiency. With our advanced Wire EDM technology, we can create intricate and complex shapes with exceptional accuracy. Our machines are capable of handling parts up to 16 inches in height, making us well-equipped to tackle a wide range of projects. Whether you need prototypes, small batch production, or high-volume manufacturing, our Wire EDM services deliver consistent and reliable results.asdasd

Schedule a meeting

We pride ourselves on achieving tight tolerances, ensuring that every part meets your exact specifications. Our Wire EDM process can achieve tolerances as tight as ±0.005mm, providing the precision required for even the most demanding applications. We utilize a variety of EDM wire diameters, including 0.1mm, 0.15mm, 0.2mm, 0.25mm, and 0.3mm, allowing us to tailor our approach to the specific needs of your project. Trust us to deliver high-quality, precise components that meet your requirements and exceed your expectations.

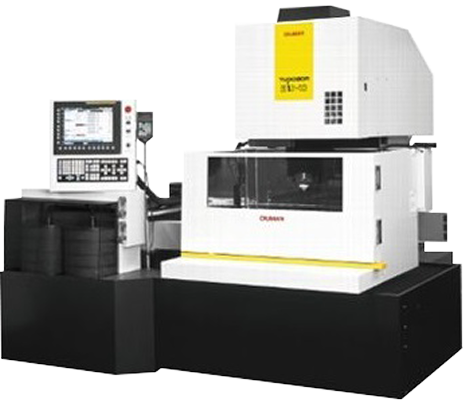

Wire EDM

Our offer includes Wire EDM intended for use in production companies, educational printers, amateur printers for home use and professional industrial 3D printers.

Book An Appointment

How Wire EDM Works

Wire EDM operates by generating a series of rapid, repeating electrical discharges between a thin wire electrode and the workpiece, both of which are submerged in a dielectric fluid. The wire, typically made of brass, copper, or tungsten, is strung between two spools and moves along a programmed path. As the electrical discharges occur, they erode material from the workpiece in a precise pattern, allowing for the creation of intricate shapes and features[1][2].

The dielectric fluid serves multiple purposes: it cools the work area, removes eroded material, and acts as an insulator until the electrical discharge occurs. This process ensures that the wire never actually touches the workpiece, preventing any mechanical stress or deformation[2].

Advantages of Wire EDM

Precision and Accuracy

Wire EDM is renowned for its ability to produce highly accurate and precise cuts. It can achieve tolerances as tight as 0.005 mm and surface finishes up to 0.8 μm, making it ideal for applications requiring intricate details and high dimensional accuracy.

Complex Geometries

Wire EDM can cut complex contours, slots, holes, and 3D profiles that would be challenging or impossible to achieve with conventional machining methods. This capability is particularly valuable in industries such as aerospace, medical device manufacturing, and tool and die making.

Material Versatility

Wire EDM can machine a wide range of electrically conductive materials, including hardened steels, carbides, titanium, and superalloys. This versatility makes it suitable for applications involving hard or exotic materials that are difficult to machine using traditional methods.

No Mechanical Stress

Since Wire EDM is a non-contact machining process, it does not induce mechanical stress on the workpiece. This makes it ideal for delicate parts and materials that could be damaged by conventional machining forces.

Excellent Surface Finish

Wire EDM produces excellent surface finishes without the need for secondary finishing operations. The process leaves no burrs and creates smooth surfaces ready for assembly or further processing.

Cost Effective

For complex parts and hard materials, Wire EDM can be more cost-effective than traditional machining methods. It reduces tool wear costs and minimizes material waste through precise cutting.

Applications of Wire EDM

Wire EDM is widely used in various industries for applications that require precision and complexity. Some common applications include:

Aerospace

Manufacturing of turbine blades, fuel system components, and other critical parts that require high precision and complex geometries.

Medical

Precision medical devices, surgical instruments, and implants manufactured with the highest quality standards.

Industrial

Heavy machinery components, hydraulic systems, and industrial equipment for demanding applications.

3D Printing

Additive manufacturing solutions for rapid prototyping and custom part production with advanced materials.

Wire EDM is a powerful and versatile machining process that offers numerous advantages over traditional methods. Its ability to produce precise, complex shapes with minimal material waste and no mechanical stress makes it an invaluable tool in various high-tech industries. By leveraging the unique capabilities of Wire EDM, manufacturers can achieve superior quality and efficiency in their production processes.

References[1] Electrical discharge machining - Wikipedia[2] Wire EDM Explained: Everything You Need to Know - Unionfab[3] What is Wire EDM Cutting, its advantages & limitations? - Material Welding[4] Benefits of Wire EDM Cut-Process, Advantages & Applications - ProleanTech[5] How Does Wire EDM Work? Definition, Process & Applications | Owens ...[6] Wire EDM. Guide to EDM Wirecut Machine, Process & Uses
